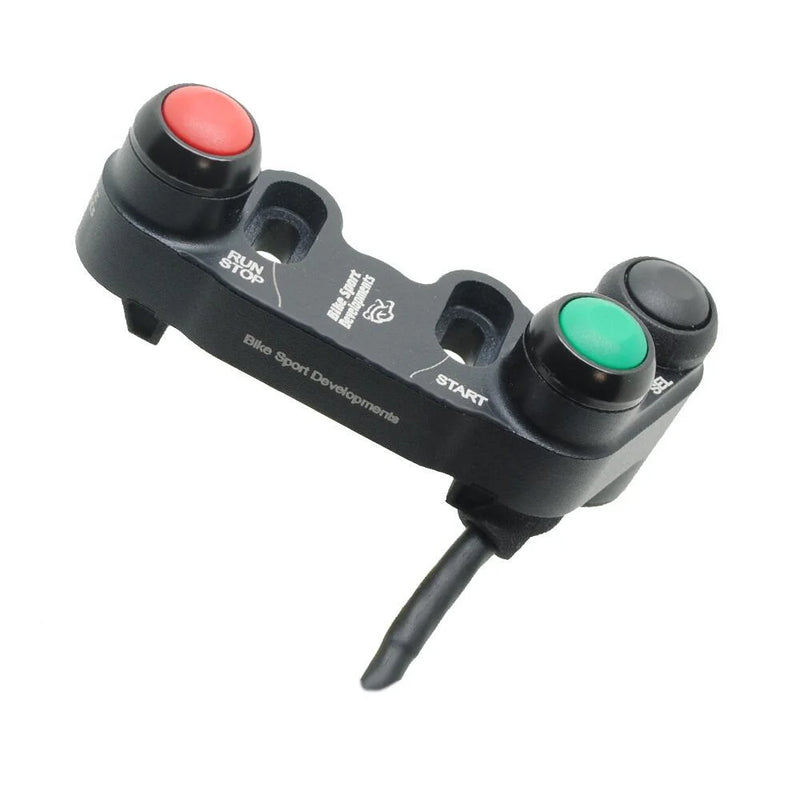

Bike Sport '23 -'26 Kawasaki ZX4RR - 3 function - brake mount
AT CHECKOUT IN THE COMMENT BOX PLEASE SPECIFY WHAT CLUTCH & BRAKE CLAMPS YOU LIKE TO BE INCLUDED WITH YOUR ORDER. SEE INFO BELOW.
SPECIAL ORDER WITH A 2 WEEK LEAD TIME.
Customer is responsible for duty / tariff fees
Model : ZX4 RR
Year : 2023 onward
Part Number : BD-SW-3BC-49
Number of switch functions : 3
Position : Right side
Road or Track : Track only
Mounting type : Mounts directly onto the brake master cylinder
This switch is is a direct 'plug n play' replacement for the standard switch assembly.
Functions :
- Select
- Stop/Run

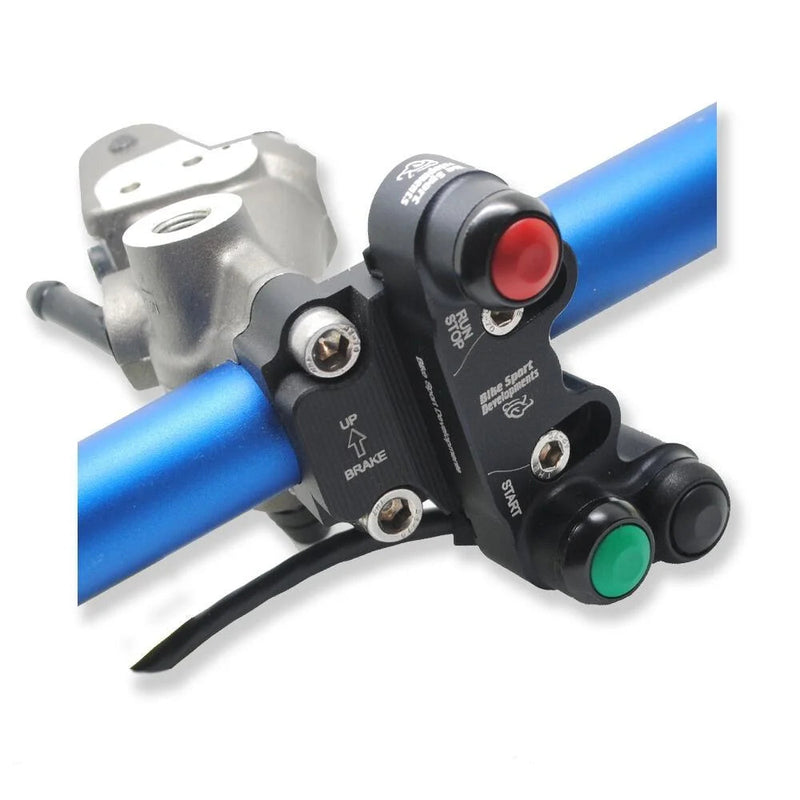

- Start These 'Type C' switches mount directly onto the brake master cylinder using the two original clamp screws and a new dedicated clamp.
One clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard bike, but you are free to choose an alternative clamp at the time of ordering at no extra cost.
We have brake clamps for:
- BR-A 32mm in-line bolts with a right offset switch location -
- BR-N 32mm in-line bolts with a left offset switch location for short brake levers
- BR-B 30mm offset bolt spacing - Brembo XR , GP
- BR-F 30mm in-line as found on Accosato / Hel components
- BR-J 32mm offset bolts spacing as found on Beringer components
- BR-G Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)
Unless otherwise specified we will supply the BR-A clamp for this application.
Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly
Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket brake components, or narrow bars.
Construction / Notes:
- Billet aluminum body
- IP 67 waterproof switches with gold plated contacts
- Raychem type 55 wire and DR25 sleeving

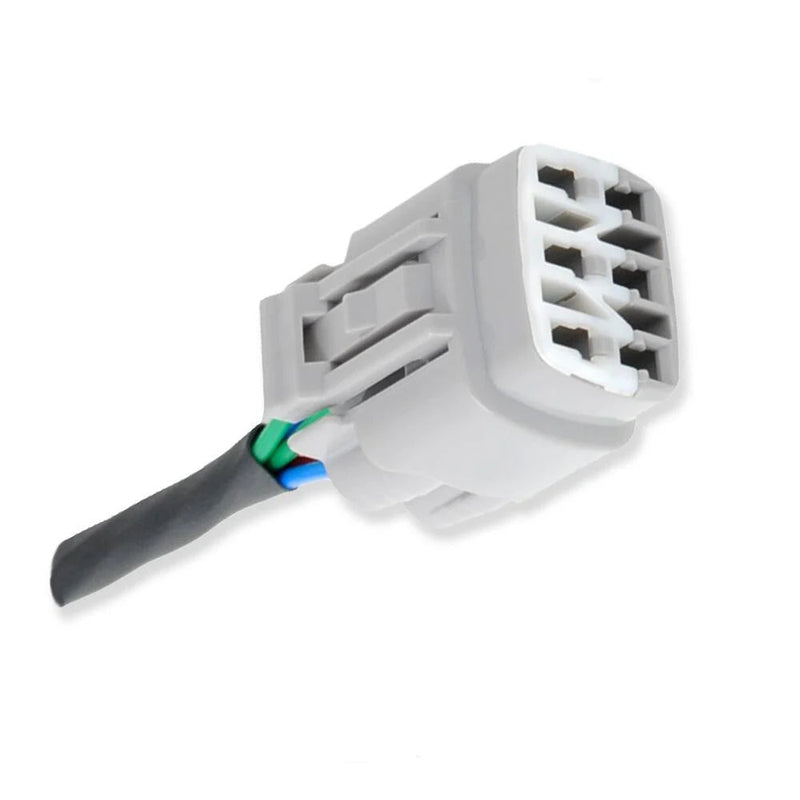

- Plug and play wiring
- Greater crash protection and electrical integrity
