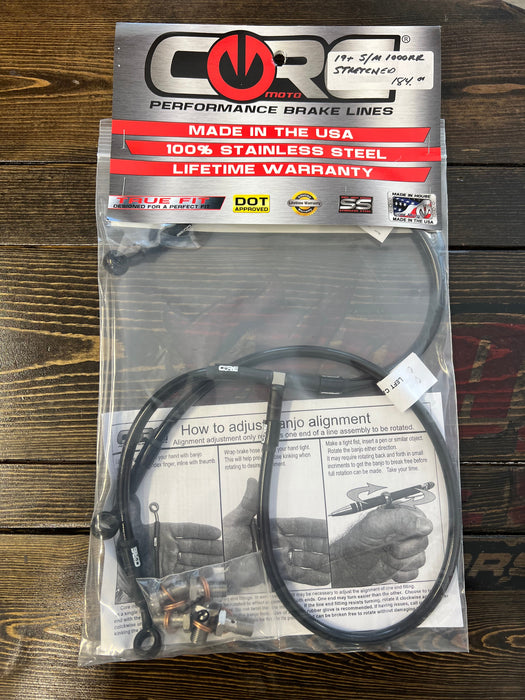

Core Moto 3T Custom Front Brake Kit '19+ BMW S1000RR / '21 M1000RR (NON- ABS 2" Stretch)

NOTE: THIS FRONT KIT IS ONLY FOR RACE BIKES THAT HAVE HAD THE ABS SYSTEM DELETED. THIS IS NOT AN ABS LINE...

THIS KIT IS CUSTOM WITH A 2" STRETCH ON L2 & L3 (SEE DIAGRAM) FOR A BIKE THAT HAS A 130MM FORK STRETCH. CAN BE USE WITH STANDARD 120MM FORK LENTGH. KIT HAS BLACK LINE, BLACK BANJOS & BLACK TAG W/ WHITE LOGO. KIT HAS 45 DEGREE BANJO FOR "STOCK" CALIPERS. 20 DEGREE BANJO AT THE MASTER. KIT INCLUDES 3 - 1.0 X 10MM BOLTS AND WASHERS

1: 3T-E KIT CONSISTS OF A 4 SECTION LINE ASSEMBLY FOR THE FRONT BRAKES ONLY. EACH SECTION IS PERMENANTLY SWAGED/CRIMPED TO FORM THE 4 LINE ASSEMBLY.

1 LINE COMES FROM THE MASTER CYLINDER TO A T SECTION THAT SITS INFRONT OF THE RIGHT FORK TUBE AT THE LOWER TRIPPLE CLAMP. A BRIDGE LINE CONNECTS THE THE BRANCH OF THE T AND SPANS ACROSS FRONT OF THE LOWER TRIPLE TO A 90 DEGREE ELBOW FITTING ( e FITTING).

THE LEFT AND RIGHT CALIPER LINES ARE ATTACHED TO THE T AND E FITTINGS. THESE LINES ARE EQUAL LENGTH. THE LEFT AND RIGHT LINES ROUTE AROUND THE OUTSIDE OF THE FORKS THEN TO THE CALIPERS.
